    Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566

    Ask Lasest Price
    Brand Name : YiHang
    Model Number : 1/2"-60"
    Certification : API/ISO
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Tons/Month
    Delivery Time : 3-10 Days
    • Product Details
    • Company Profile

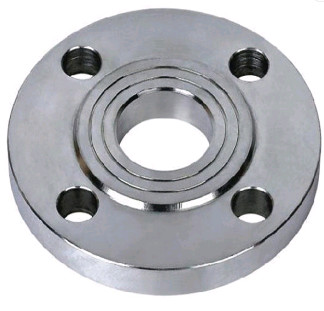

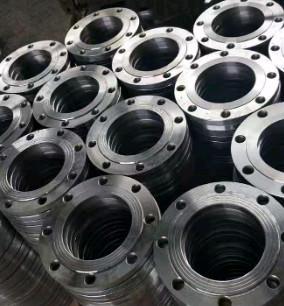

    Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566

    ANSI B16.5 Standard A105 Class 150 Forged Carbon Steel Pipe Flange

    Product Description:


    Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve.

    1.ANSI FLANGES

    Standard: ANSI B16.5 // ANSI B16.47 // MSS SP44 // ANSI B16.36 // ANSI B16.48

    Types : Welding Neck Flanges // Slip on Flanges //


    Threaded Flanges, Socket Welding Flanges // Blind Flanges //


    Orifice Flanges // Lap Joint Flanges // Ring Joint Flanges //


    Long Welding Neck Flanges // Figure 8 Blanks//Anchor Flanges

    Pressure

    grade : Class150 // Class300 // Class400//Class600 // Class900 //

    Class1500 // Class2500

    Size : 1/2" NB ~ 48" NB

    2.DIN FLANGE

    Standard: DIN2527,DIN2566,DIN2573,DIN2576,DIN2641,DIN2642,DIN2655,DIN2656,DIN2627,DIN2628,DIN2629,DIN2631DIN2632,DIN2633,DIN2634,DIN2635,DIN2636,DIN2637DIN2638,DIN2673

    Types : Welding neck Flanges // Slip on Flanges // Threaded Flanges //

    Socket Welding Flanges // Blind Flanges

    Pressure

    Grade :6Bar,10Bar,16Bar,25Bar,40Bar Size: DN10 ~ DN1000

    3.JIS B2220 FLANGES

    Types : SOP type; SOH type; SW type; WN type ; LJ type; TR type

    Pressure Class: 5K, 10K, 16K, 20K, 30K

    Material : Rst37.2, S235JRG2, C22.8, SS400, SF440A, A105Size: 10A ~ 1500A

    4.BS FLANGES

    Standard: BS 4504 SEC 3.1 :

    Welding neck Flanges(111/134),

    Hubbed Slip on Flanges(112) ,

    Hubbed Threaded Flanges(113),

    Lapped Pipeend FlangesE(133),

    Plate Flanges(101),Loose Plate Flanges(102), L

    oose Plate With Weld-neck Flanges (104),

    Blank Flanges(105)

    Standard: BS 4504(PART-1)Pressure grade: PN2.5 ~ PN40

    Standard: BS 10 :

    Welding neck Flanges,

    Plate Slip-on Flanges,

    Screwed Boss Flanges,

    Slip on Boss Flanges,

    Blind FlangesTypes: Table: D, E, F, HSize: 1/2" NB ~ 48"NB

    5.EN 1092-1:2001 FLANGES

    Type : TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5

    (Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip- on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)

    Pressure Class: PN2.5 // PN6 // PN10 // PN16 // PN25 // PN40 // PN63 // PN100

    Size : 1/2" ~ 48"

    6.UNI FLANGE

    Types : UNI2276 2277 2278 6083 6084 6088 6089 2299 2280

    2281 2822 2283. .. (PLSOWNBLTH) FLANGES

    Pressure Class: PN0.25 ~ 250MAP

    Size : 1/2" ~ 48"

    7.GOST FLANGES

    Types : Plate Flanges(GOST12820-80); Blind Flanges(GOST12836-67);

    Wedling neck Flanges(GOST12821-80); Steel Butt-weld flanges

    Pressure Class: PN0.6 ~ PN10,0 (100 /2)

    Size : 1/2" ~ 48"

    Material
    Carbon steel, stainless steel, alloy steel, aluminum, copper, etc.
    Surface treatment
    Plating(zinc,nickel,chrome), electrophoresis, painting, powder coating,electrostatic spraying, hot dip galvanized, polishing
    Size or shape
    According to customer drawing or sample
    Range of Material Thickness
    It is 0.2-10mm for punching, stamping, forming, and no thickness limit for welding.
    Processing Range
    Sheet Metal Fabrication,CNC Machining Laser Cutting, Stamping, Deep Drawing, Bending, Punching, Welding
    Service mode
    OEM or ODM
    Certification
    ISO9001:2008, TS16949, EN 15085, quality management system
    Feature
    Focus on high end market products
    Market
    All over the world

    Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566Super Large Socket Weld Carbon Steel Flange Class 2500 DIN2566
