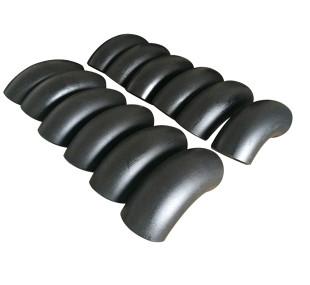

ASME B16.9 A234 WPB 90deg Lr Seamless SCH40 Carbon Steel Elbow
Product Description:
1. NAME: 90DEG LR Seamless Carbon Steel Elbow
2. MATERIAL: A234WPB/C, A420WPL6, A420WPL3 etc.
3.SIZE RANGE: 1/2"-32" (DN15-DN800) for seamless,
18"-100"(DN450-DN2500) for welded
4.WALL THICKNESS: Sch20-Sch160 XXS
Advantages And Characteristics
| Product Description | |||
| Type | Carbon steel Butt-welding pipe Fitting(Elbow, Tee, Reducer, Cross, Cap , Stub Ends) | ||
| Carbon steel Forged Pipe Fitting(Elbow, Tee, Cross ,Union, Coupling, Outlet, Boss, Bushing, Plug, Nipple) | |||
| Size | Seamless | DN15-DN800(1/2"-32") | |
| Welded | DN450-DN2500(18"-100") | ||
| forged | DN8-DN100(1/4"-4") | ||
| Wall Thickness | Sch20-Sch160 XXS | ||
| Material | America | A234WPB/C, A420WPL6, A420WPL3, MSS SP75 WPHY42/46/52/56/60/65/70 | |
| Europe | P250GH, St45.8, St37.0, St35.8 | ||
| Standard | ASME, MSS, EN, DIN, ISO, JIS, GB, SH, HG, JB, GD | ||
| Certificate | ASME, ABS, BV, GL, TUV, CCS, TS, ISO | ||
| Features | Our products are corrosion and high-temperature resistant | ||
| We can also produce other specifications according to customers' requirements | |||
| Best price / Prompt Delivery / High Quality | |||
| Packing | Plywood case, fumigated wooden case, pallet or as per customers' requests | ||
The three most common types of elbows in piping are the 45, 90, and 180 degrees (or return elbow), as
shown in the image:
Buttweld elbows below 24 inches in diameter are produced by
cutting, heating and bending seamless steel pipes; pipe elbows of
larger sizes are manufactured, instead, from welded pipes or steel
plates.ASME B16.9 buttweld elbows are manufactured in a wide range of dimensions (combinations of
outside diameter and wall thickness) to fit ASME B36.10 and ASME
B36.19 carbon, alloy and stainless steel pipes of any size between
2 and 48 inches (and above).
Buttweld elbows 45 and 90 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).
Mandrel Process
Cold forming
Manufacter supplis strightly , of good quality and big quantity
Used to the pipes connecting ,
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
|
|
