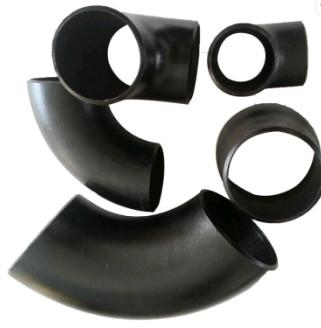

ASTM Forged Pipe Fitting Butt Welding Carbon Steel Pipe Elbow
Product Description:
Material: Carbon Steel: ASTM/ASME A234 WPB/WPC; A420 WPL6; ASTM
A860 WPHY42/52 /60/65/70/75, ST37.0, ST35.8, ST45.8, 10CRMo910,
15CrMo, 12Cr1MoV,etc;
Alloy Steel: A234 WP1/WP2/WP5/WP9/WP11/WP12/WP22/WP91, etc;
Stainless Steel: A403 WP304/304L; WP316/316L/316H;WP347H,etc.
Size: 1/2"~24"; 26"~96"
Wall Thickness: SCH5S~XXS
Standard: ASTM/JIS/DIN/BS/GB
ASME B16.9, ASME B16.28, MSS SP43,
DIN2605,DIN2617,DIN2516,JISB2311,etc; or design as the clients'
requests;
Usage:Petroleum, chemical, power plant, gas, metallurgy,
shipbuilding, construction, etc
Advantages And Characteristics
| Butt welding pipe fittings - Elbow | |
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28,JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378 |
| Bending radius | Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple |
| Degree | 45 / 90 / 180, or customized degree |
| Size Range | Seamless type: ½" up to 28" |
| Welded type: 28"-to 72" | |
| WT Schedule | SCH STD,SCH10 to SCH160, XS, XXS, |
| Carbon Steel | A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, WPHY-42WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, |
| Alloy Steel | A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| Special Alloy Steel | Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
| Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 | |
| WPS 31254 S32750, UNS S32760 | |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
| Duplex stainless steel | ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
| Applications | Petroleum industry, chemical, power plant, gas piping, shipbuilding. construction, sewage disposal,and nuclear power etc. |
| Packaging material | plywood cases or pallets, or as per customer's requirements |
| Production Period | 2-3weeks for normal orders |
Buttweld elbows below 24 inches in diameter are produced by
cutting, heating and bending seamless steel pipes; pipe elbows of
larger sizes are manufactured, instead, from welded pipes or steel
plates.ASME B16.9 buttweld elbows are manufactured in a wide range of dimensions (combinations of
outside diameter and wall thickness) to fit ASME B36.10 and ASME
B36.19 carbon, alloy and stainless steel pipes of any size between
2 and 48 inches (and above).
The three most common types of elbows in piping are the 45, 90, and 180 degrees (or return elbow), as shown in the image:
Buttweld elbows 45 and 90 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).
Mandrel Process
Cold forming
Manufacter supplis strightly , of good quality and big quantity
specializes in producing duplex stainless steel and stainless steel pipe fitting ( elbow, tee, reducer, stub end, cap), flange, forged fitting, sanitary fitting etc.
Welsure products are according to ANSI/ASME B16.9, ANSI/ASME B16.5/B16.47, ANSI/ASME B16.11, GB/T12459, GB/T13401, BS, DIN,JIS etc.
We will offer quality products at best price with good services to our customers around the world. We are looking forward to cooperating with you.
Used to the pipes connecting ,
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
|
|
